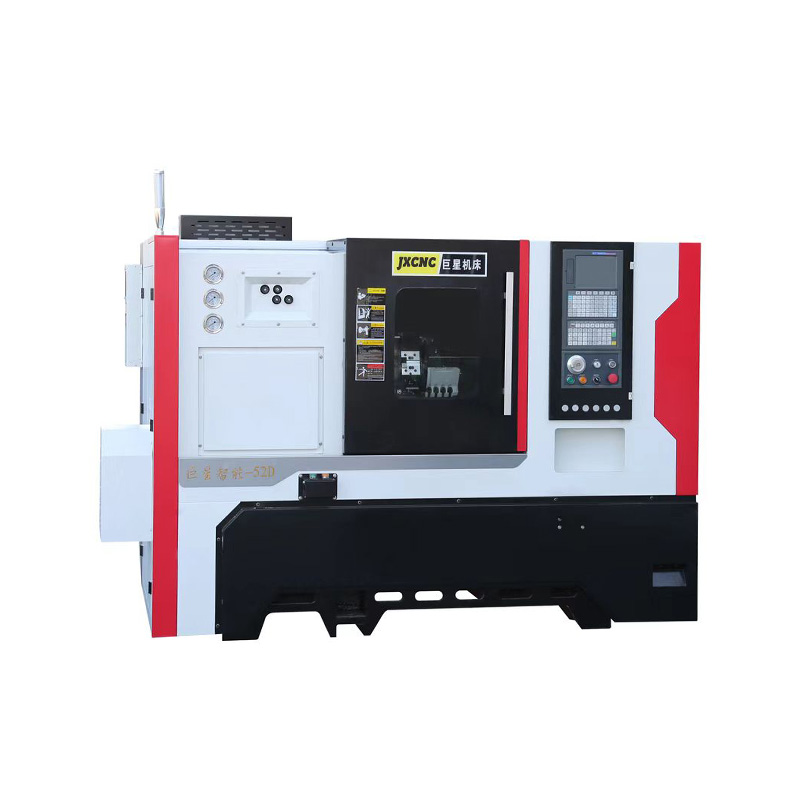

JX52D High Quality Machine Tool Equipment

As a trusted machine tool equipment supplier in China, we prioritize customer satisfaction and strive to provide the solutions and support. Our JX52D High Quality Machine Tool Equipment is engineered with cutting-edge technology and premium materials to meet the diverse needs of the manufacturing industry. Whether for small-scale operations or large-scale production, our machine tool equipment is designed to maximize efficiency, reliability, and precision.


Choose us as your trusted machine tool equipment supplier in China, and experience the ity of JX52D High Quality Machine Tool Equipment. Feel free to contact us for more information and product inquiries.


JX52D High Quality Machine Tool Equipment Suppliers in China is a machinery developed by our company, designed specifically for precision machining and manufacturing applications. As Machine Tool Equipment Suppliers in China, we take pride in offering our clients cutting-edge technology, high-quality components, and exceptional performance.

PREV：No previous article
NEXT：JX50D China CNC Machine Tools List
Get A Quote
  • Specification
  • Contact Us

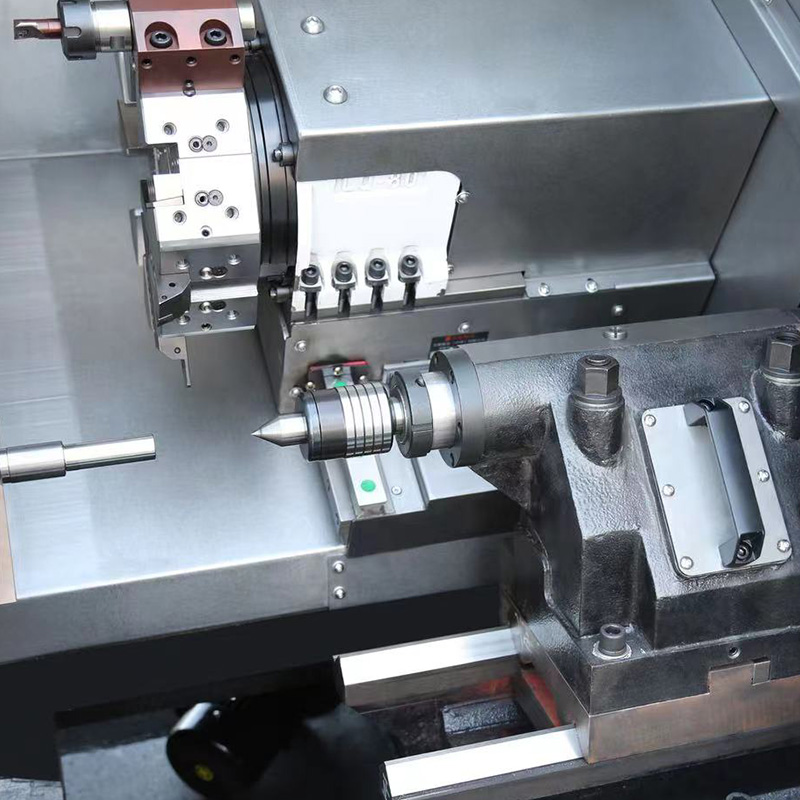

  • 1. Servo Hydraulic Turret: Our machine tool equipment features a compact design, high stability, and simple structure. The servo motor-driven design enables fast bidirectional tool selection. The three-piece clutch locking device ensures hydraulic compression.
    2. Strong and Durable Construction: We have designed our machine tool equipment with precision to withstand heavy-duty operations. The added specific trace elements enhance stability, and the 30-degree inclined bed structure allows for easy chip removal and convenient access for operators and loading/unloading.
    3. High-Quality Castings: All main castings are made of premium cast iron using advanced finite element analysis technology. This ensures a reasonable design structure and optimized layout. Additionally, secondary aging treatment guarantees long-term machining stability.
    4. Precision Transmission: Both the X and Z axes utilize precision ball screws combined with a scientific pre-tensioning assembly process, resulting in minimal thermal deformation and high transmission accuracy.
    5. Support System: We employ reputable brands for the ball screw supports and high-precision locking nuts to improve the support and locking accuracy of the ball screws, further enhancing the machining precision of our machine tool equipment.
    6. Consistency in Accuracy and Longevity: Our machine tool equipment delivers exceptional precision and offers a long service life, ensuring consistent performance and productivity over an extended period.
    Parameter items Numerical value Unit
    Processing capacity Bed rotation diameter mm Φ420
    Turning radius (center height) mm Φ170
    X/Z axis travel mm 225/400
    X/Z axis fast feed speed m/min 20/20
    X/Z axis servo motor power N.m. 45209
    Precision Spindle runout mm 0.003
    X/Z axis positioning accuracy mm 0.01/0.01
    X/Z axis repeated positioning accuracy mm 0.003/0.003

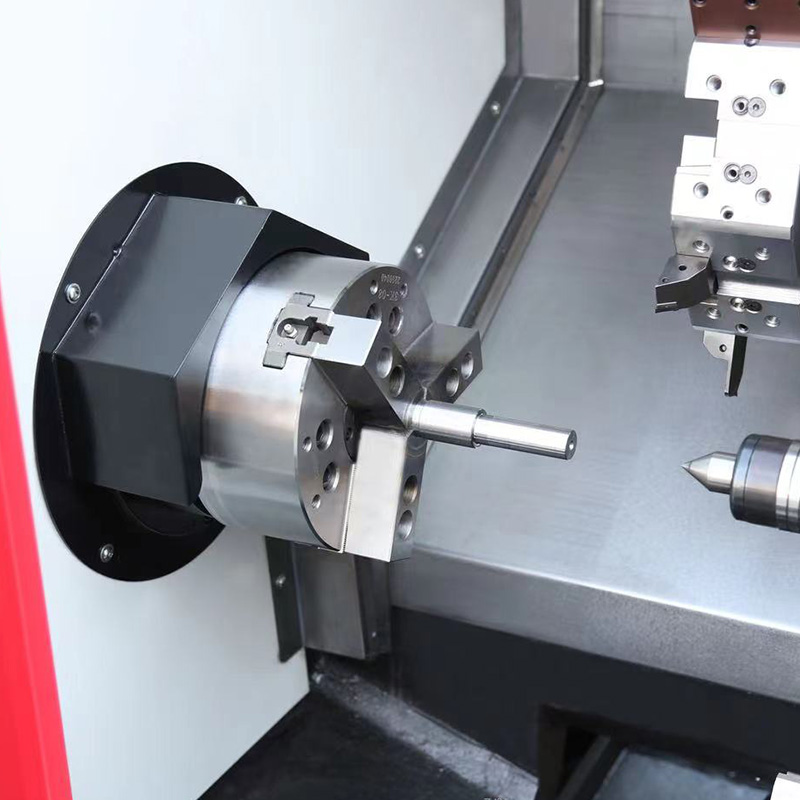

    Principal axis Spindle nose form A2-6
    Spindle through hole diameter mm Φ66
    Can pass the rod diameter mm Φ51
    Spindle motor power kw 7.5
    Maximum spindle speed rpm 4000
    Tailstock Tail seat thimble taper Mohs 4
    Tail seat sleeve diameter mm 100
    Tail seat travel mm 400
    Other parameters Cooling water pump power w 370
    Oil pump pressure mpa 20-40
    Power supply v/ph/hz 380/3/50
    External dimensions mm 2200*1600*1700
    Net weight of machine kg 3200
