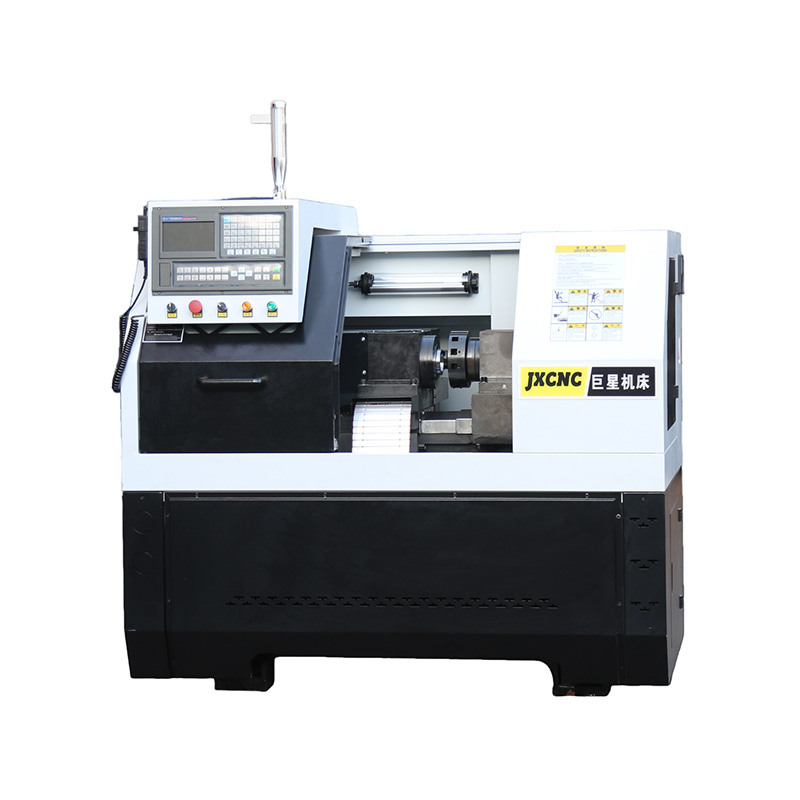

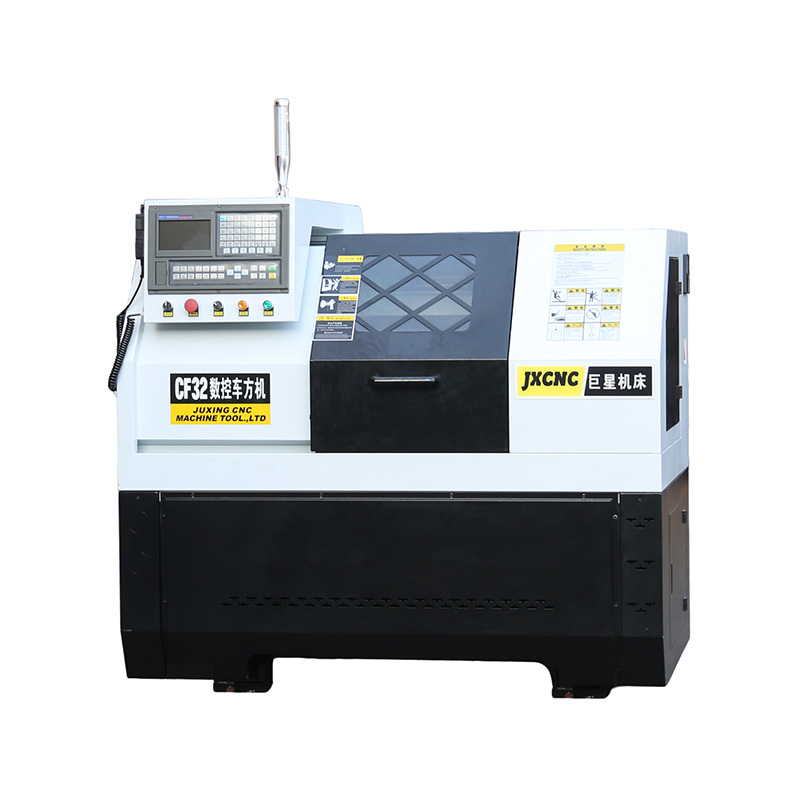

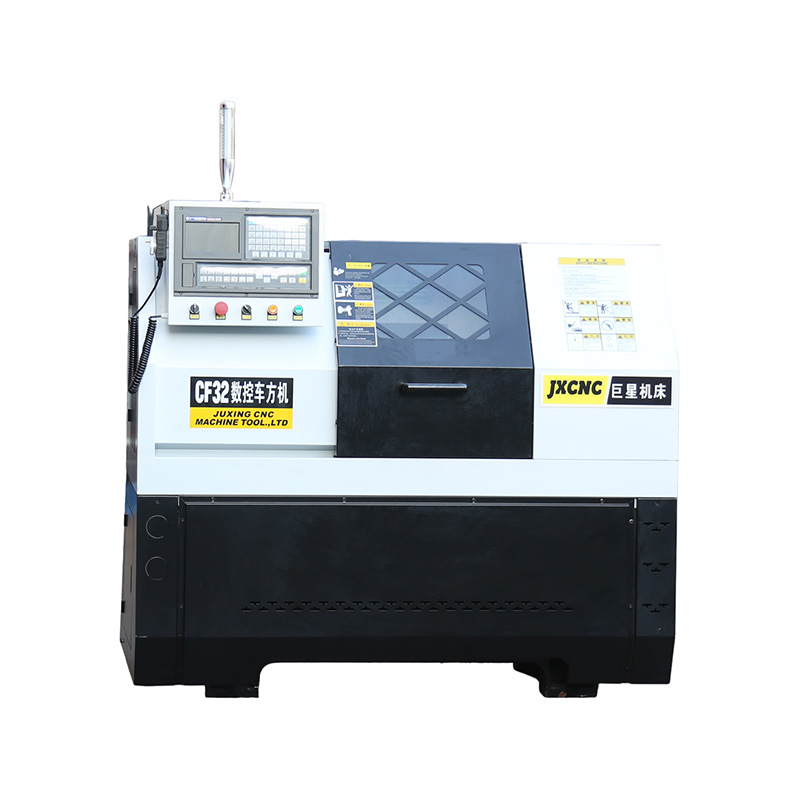

CF32 hydraulic clamping CNC polygon lathe is designed for milling small and medium-sized high-precision parts, which can mill square, octagonal, hexagonal and other shapes of polygons. Adopting advanced CNC system, it can process curved surface, arc surface and taper surface.
The machine provides various operation modes, including manual and semi-automatic. It can also be equipped with a feeding device to achieve fully automated production and save labour costs.
By overhauling the traditional polygon milling process, the CF32 machine significantly improves its efficiency by 2-5 times, while ensuring high surface finish of the products.
The main body of the machine is made of high quality cast iron process casting. Reasonable design and optimised layout are achieved through advanced finite element analysis technology. After secondary aging treatment, long-term processing stability is ensured.
Both axes adopt precision ball screws, scientific pre-stress assembly process, small thermal deformation and high transmission accuracy.
The screw support system adopts precision bearings of well-known brands, and the screw locking nut adopts high-precision locking nut. These improvements improve the support and locking precision of the screws, which further improves the processing precision of the machine.
To ensure the normal precision and service life of the machine, an automatic centralised lubrication system is adopted. This system lubricates moving parts such as screws and guideways by setting the interval and duration of oil injection.

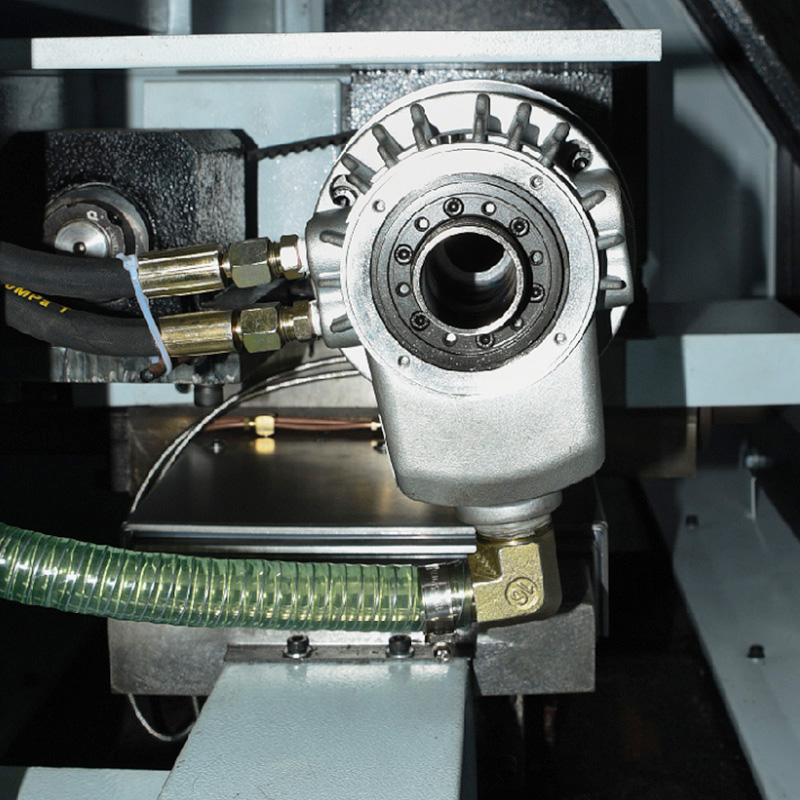

The CF32 Hydraulic Clamping CNC Polygon Lathe is equipped with a user-friendly interface that allows the operator to easily programme and control the machine. The machine also features a reliable and powerful hydraulic clamping system that ensures a safe and stable hold on the workpiece during machining.
With the high machining speed and accuracy of the CNC system, combined with the machine's exceptional rigidity and stability, the CF32 machine guarantees machining accuracy and surface quality.
For safety reasons, the machine is equipped with an emergency stop button, guard and safety interlocks to ensure the safety of the operator.
The CF32 Hydraulic Clamping CNC Polygon Lathe is widely used in the automotive, aerospace, and precision manufacturing industries. It is ideal for producing high precision polygonal parts with surface finish requirements.
In summary, CF32 hydraulic clamping CNC polygon lathe features high precision, high efficiency and smooth surface. Its advanced CNC system, robust construction and user-friendly interface make it an choice for milling small and medium-sized precision parts. With its reliability, stability and safety, the CF32 machine delivers outstanding performance and results in a variety of industries.
