Comparing Flat Bed CNC Lathes and Slant Bed CNC Lathes

China Sale Flat Bed Slant Bed CNC Lathe Factory Supplier

In the world of machining, CNC (Computer Numerical Control) lathes are indispensable for precision turning operations. These machines are essential in producing parts with high accuracy and efficiency. Two common types of CNC lathes are flat bed and slant bed lathes. Each design offers unique characteristics that influence their suitability for various applications.

Characteristics of Flat Bed CNC Lathes

Flat bed CNC lathes are characterized by their horizontal bed design. The key features and advantages of flat bed CNC lathes include:

Design and Structure: The flat bed design features a horizontal surface where the carriage and tailstock are mounted. This configuration provides a stable and rigid platform, which is particularly advantageous for handling large and heavy workpieces. The horizontal alignment reduce the risk of deflection and vibration during machining.

Workpiece Handling: Flat bed lathes are well-suited for machining long and heavy components. The design allows for easy loading and unloading of large parts, as the flat bed provides ample support and accessibility. This makes flat bed lathes ideal for industries where long shafts or large diameter parts are common, such as in the automotive and aerospace sectors.

Tooling and Setup: The horizontal bed allows for straightforward setup of tooling and workholding devices. This simplicity can bring about faster setup times and reduced complexity in tool changes. Flat bed lathes often have a larger work area and can accommodate various attachments and accessories, enhancing their versatility.

Stability and Precision: The low center of gravity provided by the flat bed contributes to enhanced stability during machining. This stability helps maintain precision, especially when working with larger or more complex parts. Additionally, the horizontal design can make it easier to achieve tight tolerances and high-quality finishes.

Applications: Flat bed CNC lathes are commonly used in applications requiring large or heavy workpieces. They are suitable for turning operations in industries such as oil and gas, energy, and large-scale manufacturing. The ability to handle substantial loads makes them a preferred choice for producing parts that are difficult to machine on smaller or less robust machines.

Characteristics of Slant Bed CNC Lathes

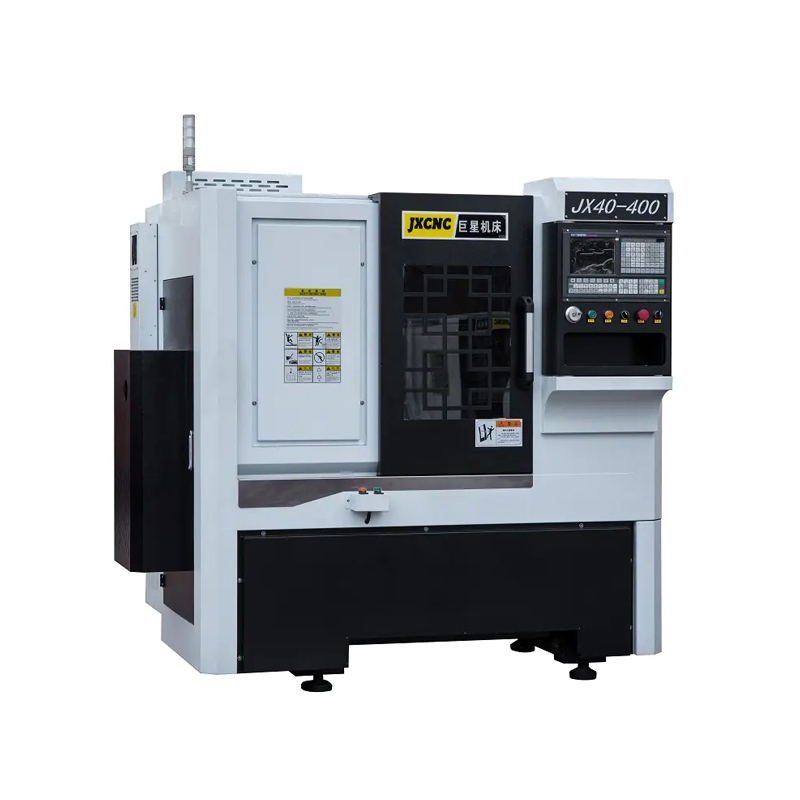

Slant bed CNC lathes feature a bed that is angled relative to the horizontal plane. This design offers several distinctive features and benefits:

Design and Structure: The slant bed design involves a bed that slopes downward from the operator's side to the tailstock. This inclined angle facilitates easier chip removal and improves access to the work area. The slant bed configuration often results in a more compact machine footprint compared to flat bed lathes.

Chip Removal and Maintenance: One of the key advantages of the slant bed design is its effective chip management. The inclined surface allows chips and debris to naturally flow away from the cutting area, reducing the risk of contamination and improving the machine's cleanliness. This design feature can also simplify maintenance and reduce downtime associated with chip buildup.

Accessibility and Ergonomics: The slant bed design enhances accessibility for the operator. The angled bed provides better visibility and easier access to the workpiece and tooling. This ergonomic advantage can bring about more efficient operation and improved safety for the machinist.

Compactness and Efficiency: Slant bed CNC lathes are often more compact than flat bed lathes, making them suitable for environments with limited space. The design allows for efficient use of floor space while still providing robust machining capabilities. The compact size can also contribute to lower overall machine costs.

Applications: Slant bed CNC lathes are commonly used for precision machining of smaller to medium-sized parts. They are well-suited for applications where quick setup, efficient chip removal, and compact machine size are important. Industries such as electronics, medical device manufacturing, and precision engineering frequently use slant bed lathes for high-accuracy, high-speed machining.
